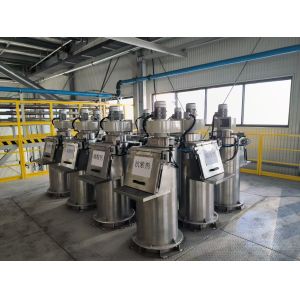

China Centralized Feeding And Pneumatic Conveying System For PVC Pipe Industry wholesale

Centralized Feeding And Pneumatic Conveying System For PVC Pipe Industry

Name: Centralized Feeding And Pneumatic Conveying System For PVC Pipe Industry
Brand: MACHTECH
Price: 1 USD

Ask Latest Price

Video Channel

Place of Origin :China

Brand Name :MACHTECH

Material :Stainless Steel

Control System :PLC

Dust Collection System :Included

Installation Method :Fixed on Ground

Unloading Mode :Automatic

Safety Features :Emergency Stop Button, Safety Interlock System

Power Supply :380V/50Hz

Conveying Method :Pneumatic

Contact Now

Add to Cart

View Product Description

Turnkey Solution for PVC Pipe Manufacturers

Our integrated feeding and conveying system delivers dust-free, high-efficiency raw material transfer for PVC pipe extrusion lines. Designed specifically for calcium carbonate, PVC resin, stabilizers, and additives, this system ensures precise formulation control while reducing labor costs by up to 60%.

System Highlights

1. Centralized Material Management

Bulk Storage Silos (5-50 ton capacity) with level monitoring
Automated Dosing - Batch accuracy of ±0.5%
Dedicated Material Paths to prevent cross-contamination between:
- PVC resin (S-PVC/E-PVC)
- Fillers (CaCO₃, talc)
- Process aids (lubricants, stabilizers)

2. Pneumatic Conveying Technology

Dilute Phase for high-volume materials (up to 15 T/H)
Dense Phase for fragile additives (<0.1% degradation)
Energy-Saving Design with 30% lower power consumption

3. Smart Control Features

Recipe Management (200+ formulations)
Remote Monitoring via SCADA/HMI
Predictive Maintenance alerts

Technical Specifications

Parameter	Performance
Capacity	2-20 T/H
Conveying Distance	Up to 100m horizontal/30m vertical
Dust Emission	<5mg/m³
Power	5.5-30kW (material dependent)

Industry Compliance:

OSHA dust control standards
ATEX Zone 22 (optional)
FDA-compliant models for potable water pipe

Why PVC Pipe Producers Choose Us?

✓ 25% Faster Material Changeovers

✓ Eliminates Manual Handling of 25kg bags

✓ Prevents Moisture Absorption with closed-loop design

✓ Reduces Formulation Errors to <0.5%
